Audio-Technica

Audio-Technica ATW-1101 System 10 Digital Wireless Bodypack Microphone System with No Mic

Audio-Technica ATW-1101 System 10 Digital Wireless Bodypack Microphone System with No Mic

Regular price $319.95 USD
Regular price Sale price $319.95 USD
Sale Sold out
Key Features
  • For Presenters & Instructors
  • Bodypack Transmitter
  • Triple-Diversity Tabletop Receiver
  • 7-Hour AA Batteries
  • Fixed Antennas
  • Expandable to 8 Mic Channels/100' Range

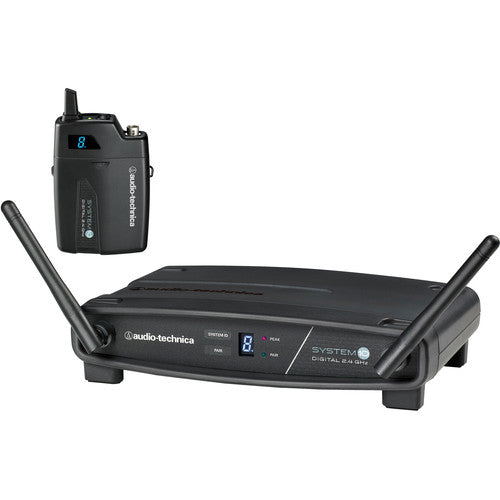

The Audio-Technica ATW-1101 System 10 is a digital wireless bodypack microphone system featuring an ATW-R1100 tabletop receiver. The portable system is well suited for quick setup in educational facilities, conference rooms, small venues, and houses of worship as well as web broadcast studios.

The easy-to-use system comes preconfigured at the factory, ready to operate right out of the box with no setup required. Three levels of diversity reception and automatic frequency selection provide seamless, reliable performance with clear digital audio for presenters, lecturers, clergy, and performers.

The ATW-1101 includes a bodypack transmitter featuring a Hirose 4-pin cW-style connector, allowing you to choose a compatible lav or headset mic (available separately) for hands-free speech. The transmitter provides up to 7 hours of continuous use with two AA batteries, at a maximum range of 100'. Up to 8 mic channels can operate simultaneously in the same space.

Clear Digital Audio That's Easy to Set Up and Operate
Digital Audio Quality



  • The System 10 offers full-bandwidth, 24-bit/48 kHz digital audio with none of the audio artifacts associated with analog companding.

Automatic Frequency Selection

  • Just power up the components, and the receiver automatically seeks out a clean frequency and pairs up with the transmitter, saving you the hassle of scanning and syncing.
  • While in use, the system continually monitors activity in the 2.4 GHz Wi-Fi range and automatically switches to a clean frequency to avoid interference if necessary.

Lightweight, Portable Receiver Chassis

  • The tabletop receiver chassis features a lightweight, plastic housing designed to let you stack multiple receivers on top of each other for convenience.
  • The chassis' front-panel LEDs show pairing statuses and warn you if the transmitter's input level is set too high and causing distortion.
  • A System ID number display indicates which transmitter is associated with a given receiver.
  • Rear-panel connections include balanced XLR and unbalanced 1/4" output connections as well as an output level control.

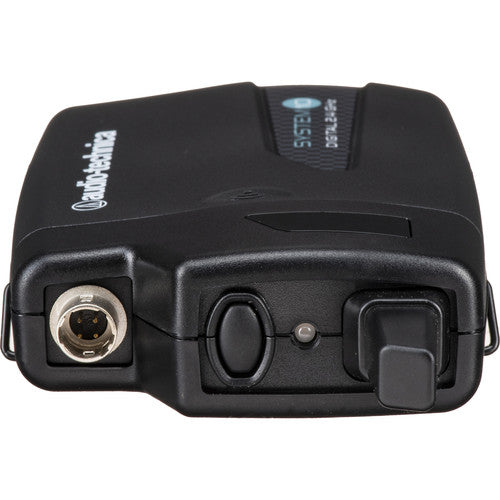

Lightweight Bodypack Transmitter

  • The transmitter is housed in lightweight, plastic chassis equipped with a Hirose 4-pin locking connector and a belt clip.
  • An internal input trim control can be set, using the included screwdriver, to match the sensitivity of your microphone or audio source for distortion-free input.
  • With just a quick press, the power switch on the transmitter doubles as a mute function. This function can be locked out to prevent an accident.

Pairing Multiple Transmitters

  • With this peer-to-peer system, the transmitter can only transmit to one receiver at a time. However, up to 8 transmitters can be paired with a receiver ahead of time. This is useful in situations when you have multiple speakers, one after another, and you need to have them miked up and ready to go. All you'll have to do is turn one transmitter off and the next one on.
Three Levels of Diversity Assurance to Avoid Dropouts
Triple Diversity Reception Maximizes Wireless Signal Integrity



  • Space Diversity: The receiver compares the signal showing up at its two antennas and chooses the strongest one.
  • Time Diversity: The transmitter sends the digital signal in two imperceptibly different time slots and compares the two.
  • Frequency Diversity: The digital audio is sent over two different frequencies at the same time and the system chooses the cleaner one.

For optimal performance, users are encouraged to maintain as direct a line of sight as possible between the transmitter and receiver.

2.4 GHz Wi-Fi Band

  • Unlike traditional analog wireless systems, the System 10 operates in the 2.4 GHz ISM band, away from interruptions and dropouts caused by TV and radio channel interference.
Add Functionality to Your System
Audio-Technica offers a variety of lavalier, headset, instrument cable, and handheld microphone options to adapt your System 10 as your needs evolve.



Presenters

  • The low-visibility, miniature MT830cW lavalier microphone delivers a natural sound optimized for speech intelligibility. Its omnidirectional polar pattern ensures that the sound remains consistent, even when the speaker's head moves away from the mic.
  • The AT831cW mini cardioid lavalier mic offers a narrower, feedback-resistant pickup pattern for louder events.
  • The discrete PRO-92cW earset mic provides improved clarity in spoken word applications.

Vocalists/Presenters

  • The ATW-T1002 handheld transmitter/mic is available for presenters and performers who prefer the flexibility of a handheld microphone.

Video Conferencing

  • The ATW-T1006 boundary transmitter/mic is designed for tabletop use, ideal for applications such as video-conferencing where minimum visibility is required.

Conferences/Boardrooms

  • The ATW-T1007 base transmitter can be used with a gooseneck mic on a table for situations where wired mics are impractical.

Guitarists

  • The AT-GcW guitar cable lets you connect the bodypack transmitter to a guitar or bass.
System
Wireless Technology Digital 2.4 GHz
Included Transmitters 1 x Bodypack
Diversity Frequency, Time & Space Diversity
RF Frequency Band 2400 to 2483.5 MHz
Max Operating Range 100' / 30.5 m (Line of Sight)
Max Transmitters per Band 8
Sample Rate/Resolution 48 kHz / 24-Bit
Dynamic Range >109 dB (Typical)
Receiver
Receiver Type Tabletop
Antenna 2 x External, Fixed (Front-Mount)
Number of Audio Channels 1
Audio I/O 1 x XLR 3-Pin Male Balanced Output (Lockable)
1 x 1/4" TS Female Unbalanced Output
Audio Output Level XLR Output:
0 dBV (Balanced)
1/4" Output:
+6 dBV (Unbalanced)
Frequency Response 20 Hz to 20 kHz (Dependent on Mic)
Power Requirements AC/DC Power Adapter
AC/DC Power Adapter 12 VDC at 0.5 A (Included)
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Display & Indicators 1 x LED (Channel, Peak, Sync)
Housing Plastic
Operating Temperature 32 to 104°F / 0 to 40°C
Dimensions 7.5 x 1.8 x 5.1" / 190 x 46.2 x 128.5 mm
Weight 10.2 oz / 290 g
Transmitter
Transmitter Type Bodypack
RF Output Power 10 mW
Audio I/O 1 x Hirose cW-Style 4-Pin Male Input (Lockable)
Muting Off/On Switch
Antenna 1 x External, Fixed
Power Requirements Battery
Battery Type 2 x AA (Not Included)
Approx. Battery Life 7 Hours (Alkaline)
Display & Indicators 1 x Multi-Segment LED (Channel)
Housing Plastic
Dimensions 2.2 x 0.7 x 3.1" / 57 x 19 x 77.6 mm
Weight 2.3 oz / 64 g
