Audio-Technica

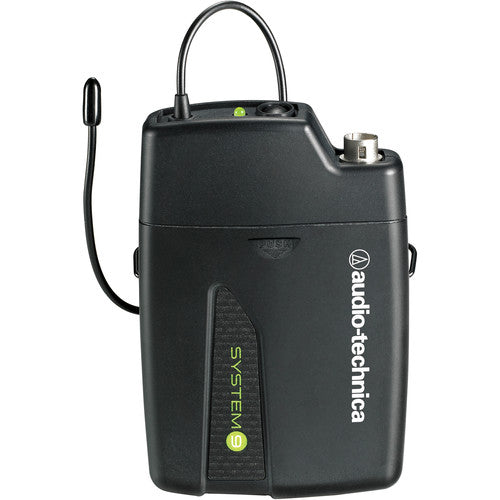

Audio-Technica ATW-T901a System 9 Frequency-Agile VHF Bodypack Transmitter

Audio-Technica ATW-T901a System 9 Frequency-Agile VHF Bodypack Transmitter

Regular price $109.00 USD
Regular price Sale price $109.00 USD
Sale Sold out
Key Features
  • 4 Selectable VHF Channels
  • Durable Construction
  • Offers Rock-Solid Performance
  • 200' Operating Range
  • Requires Lavalier or Headset Mic

The ATW-T901a System 9 Frequency-Agile VHF Bodypack Transmitter from Audio Technica is a single-channel transmitter, although it is a frequency agile system, which means you can select any one of the four frequencies (169.505, 170.245, 171.045, and 171.905 MHz) and use up to four System 9 wireless systems at the same time, if each system is set to a different frequency.

The ATW-T901a bodypack transmitter can be used when paired with an optional System 9 receiver and a 4-pin lavalier microphone, headset microphone, or AT-GcW guitar/instrument input cable (sold separately) to capture audio for presentation, ENG, and sound reinforcement applications.

Easy operation and clear, natural sound quality
4 selectable frequency-coordinated VHF channels
Reliable performance and durable construction
Overall System
Type VHF high band
Operating Frequencies 169.505, 170.245, 171.045, and 171.905 MHz
Modulation Mode FM
Maximum Deviation ±10 kHz
Dynamic Range ≥90 dB (A-weighted), typical
Total Harmonic Distortion (THD) <1% (at 1 kHz, ±10 kHz deviation)
Operating Range 200' / 60 m typical, open range environment with no interfering signals
Operating Temperature Range 40 to 110°F / 4 to 43°C, battery performance may be reduced at very low temperatures
Frequency Response 80 Hz to 13 kHz
Bodypack Transmitter
RF Power Output 10 mW
Spurious Emissions Following federal and national regulations
Input Connections Four-pin locking connector
Pin 1: GND
Pin 2: Instrument input
Pin 3: Microphone input
Pin 4: DC bias +9 V
Batteries 2 x 1.5 V AA
Battery Life Alkaline: 8 hours (depending on battery type and use pattern)
Dimensions 2.8 x 4.1 x 1.0" / 7.0 x 10.4 x 2.5 cm
Weight 2.8 oz / 79.4 g without batteries
