TASCAM

TASCAM DP-006 6-Track Digital Pocketstudio

TASCAM DP-006 6-Track Digital Pocketstudio

Regular price $189.00 USD
Regular price Sale price $189.00 USD
Sale Sold out
Key Features
  • Dual Omnidirectional Microphones
  • Records WAV Files at 16-Bit/44.1 kHz

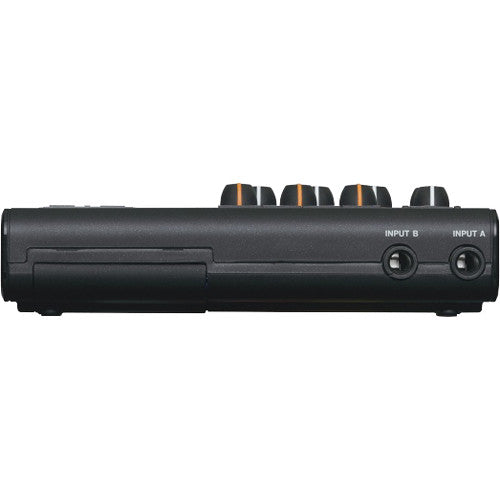

  • Two Unbalanced 1/4" TS Inputs

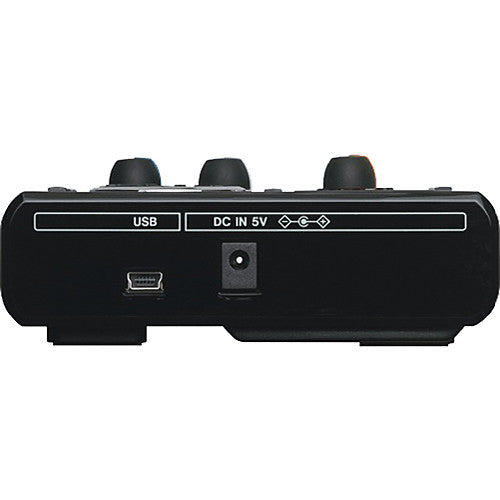

  • Mini USB 2.0 Output
  • Integrated Metronome and Tuner
  • Includes 2GB SD Card
  • 8 Hours of Operation on 4 AA Batteries
  • 1/8" Stereo Line Output
  • 1/8" Stereo Headphone Output

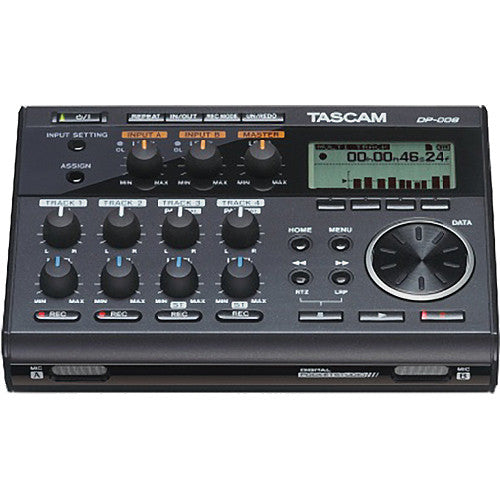

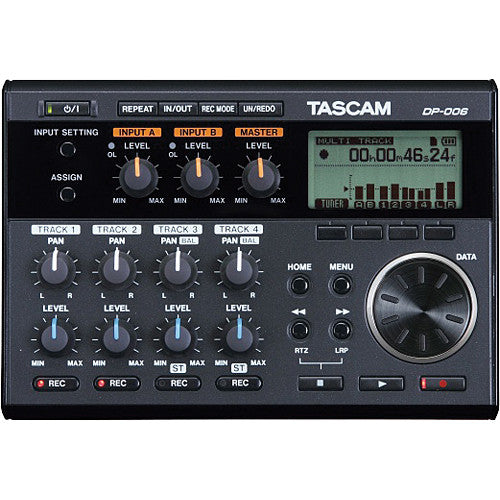

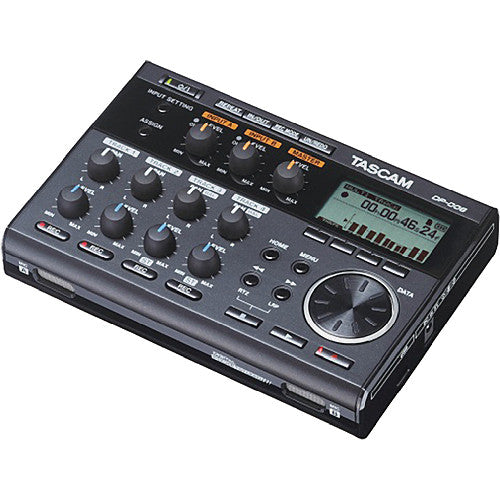

The DP-006 6-Track Digital Pocketstudio from Tascam is a compact, battery-powered multitrack recorder, featuring two built-in omnidirectional condenser microphones and WAV file resolution up to 16-bit/44.1kHz. Additionally, two unbalanced 1/4" TS line inputs can be used to record mic, line or Hi-Z instrument signals. Designed with analog functionality and dedicated control knobs, the DP-006 is ideal for on-the-spot recording. A Mini USB 2.0 output facilitates high-speed file transfer to your Mac or PC.

The DP-006 provides an 1/8" stereo line output as well as an 1/8" stereo headphone output. An integrated chromatic tuner and metronome help you perfect your performance. For elongated battery life, the DP-006 is compatible with Tascam's BP-6AA external battery pack. The DP-006 was designed with a tripod mount for versatile set-up and placement. The DP-006 features an ultra lightweight—less than 13 oz —design to ensure portability.

Versatile Recording and Data Transfer
The DP-006 can record, import and export 16-bit/44.1kHz WAV files. It is compatible with both mono and stereo files.
Recording Media Included
The DP-006 records WAV files to SD/SDHC cards up to 32GB, a 2GB card is included. High-speed data transfer is available through the onboard USB 2.0 port. Your files can then be imported to your favorite DAW.
Recording / Playback Engines
The DP-006 can record 2 mono tracks or 1 stereo track simultaneously. It offers up to 6 tracks of simultaneous playback.
Additional Features
  • Dedicated stereo master track available
  • Microphone sensitivity can be selected (Low/Mid/High)
  • Independent level/pan (balance) knobs for each track
  • 128 x 64 dot-matrix LCD display
  • Tripod mounting thread
  • Direct locate function by jog-wheel
  • Repeat playback between in/out point
  • Undo / Redo functions
  • Track edit functions: clone track, clean out, silence, cut, open
  • Bounce function allows recording of more six tracks
  • Export mixdown as stereo WAV file

TASCAM DP-006 Specs

Form Factor Desktop
Number of Tracks 6
Maximum Sampling Rate 44.1 kHz / 16-Bit
Built-In Microphone 2 x Omnidirectional Condenser
Connectivity
Analog Audio I/O 1 x 1/8" / 3.5 mm TRS Headphone Output
1 x 1/8" / 3.5 mm TRS Stereo/Line Output
2 x 1/4" TS Unbalanced Line Input
USB (Non-Host) 1 x Mini-USB (USB 2.0, External Storage)
Performance
Frequency Response 20 Hz to 20 kHz +1/-3 dB
Maximum Input Level Line Inputs:
+6 dBV
Maximum Output Level Line Outputs:
0 dBV
Headphone Output Power 15 mW per Channel into 32 Ohms (Max, 0.1% THD)
Impedance Mic/Line Inputs:
≥ 10 Kilohms
Hi-Z Inputs:
1 Megohm
SNR > 81 dB
THD < 0.05%
Audio Storage & Playback
Supported Media SD Card
Memory Card Slot 1 x SDHC
Supported Media Capacity SD/SDHC:
32 GB Minimum
File System Support Tascam (MTR), FAT32
Compatibility
OS Compatibility Windows XP
Windows Vista
Windows 7
macOS 10.2 or Later
*As of November, 2021: Check with manufacturer for the most up-to-date compatibility
Power
Power Requirements Battery, AC/DC Power Adapter (Not Included)
Power Consumption 1 W (Maximum)
Battery Type 4 x AA
Approximate Battery Life 8 Hours (Alkaline, Recording, Line Input)
9 Hours (NiMH, Recording, Line Input)
8.5 Hours (Alkaline, Playback, with Headphones)
9.5 Hours (NiMH, Playback, with Headphones)
Physical
Operating Temperature 41 to 95°F / 5 to 35°C
Dimensions 6.1 x 1.63 x 4.2" / 155 x 41.5 x 107 mm
Weight 12.7 oz / 360.0 g
