American DJ

American DJ Mega Flat Pak Plus 4x Mega Par Profile Plus LED Pars, 3x DMX Cable, and Bag

American DJ Mega Flat Pak Plus 4x Mega Par Profile Plus LED Pars, 3x DMX Cable, and Bag

Regular price $459.99 USD
Regular price Sale price $459.99 USD
Sale Sold out
Key Features
  • 4 x Slim Par Can LED Lights
  • Total of 107 LEDs (10mm) Per Fixture
  • For Uplighting and Stage Lighting
  • Dual Yoke Floor Stand
  • Beam Angle: 30°
  • DMX Control with 5 Channels
  • Primary/Secondary and Sound Active Modes
  • 5 Dimmer Curves
  • Includes 3 x 6' DMX Cables
  • Soft Carrying Bag Included

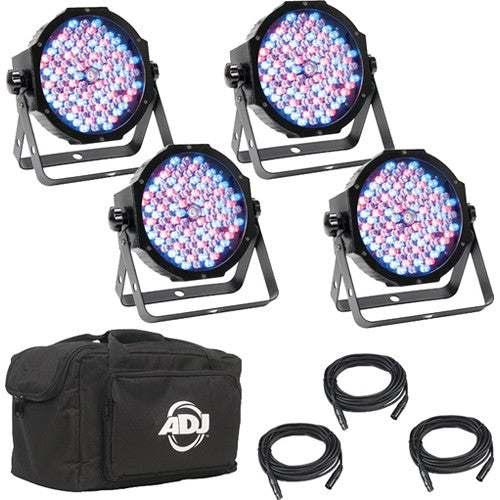

Lighting designers and mobile entertainers in search of a turnkey wash light solution will appreciate the American DJ Mega Flat Pak Plus, which combines four Mega Par Profile Plus LED fixtures with three 6' DMX cables and a soft carrying bag, to provide the primary components of a mobile lighting rig with protection from the rigors of on-the-road wear and tear. The Mega Par fixture is a compact, low-profile par designed for uplighting and stage lighting. This 2-in-1 fixture offers RGB color mixing plus UV black light, making it a multiuse wash fixture. And with 32 built-in light shows and 64 color macros, the Mega Par Profile Plus is an ideal solution for multiple venues.

This intelligently designed light can sit directly on the ground or inside a truss without the hanging bracket because the power and DMX inputs and outputs are located on the side of the fixture, not on the rear. The Mega Par Profile Plus has a 30-degree beam angle, 5 operational modes (including DMX Controlled, Sound Active, and Auto Run), and has 5 DMX Channel modes for a variety of programming options. Users can also use the ADJ LED RC2 wireless remote, which is sold separately, to control the Mega Par Profile Plus.

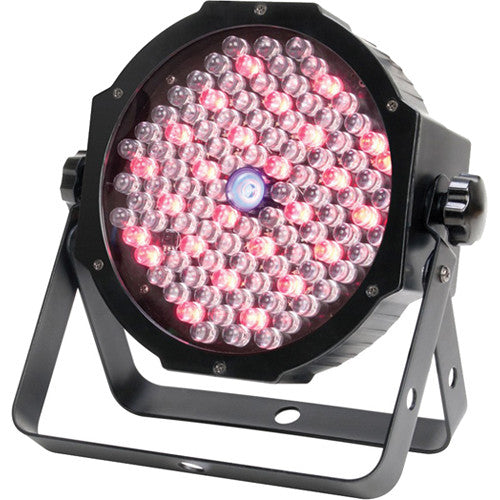

Mega Par Profile Plus LED
  • Slim flat black Par with 107 LEDs
  • Smooth RGB+UV color mixing (fast or slow color change operation)

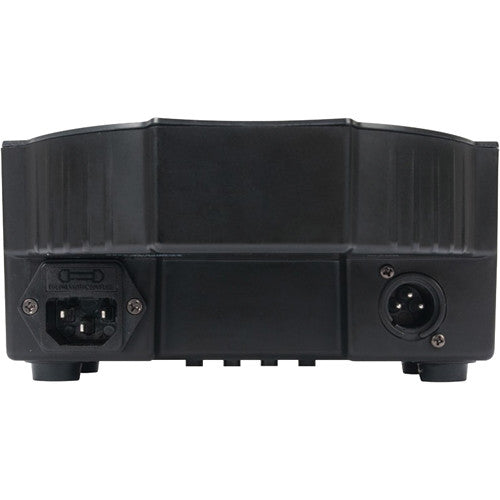

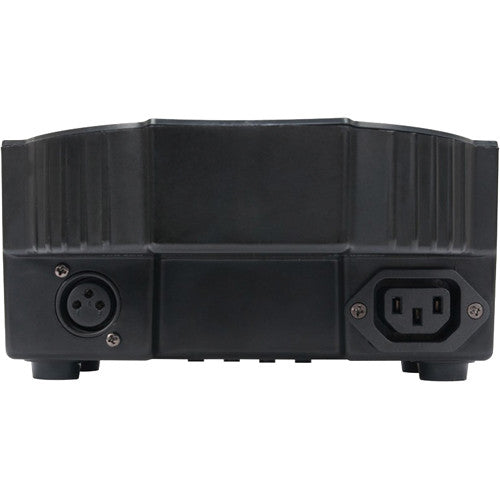

  • Power and DMX ins/outs sit sideways so the unit can be set flat on the ground or set inside truss using included scissor yoke
  • DMX-512 protocol
  • 5 DMX Channel modes: 4, 5, 6, 9, 10
  • 5 Operational modes: RGB+UV Dimmer Mode, Sound Active Mode, Auto Run Mode, Static Color Mode, and DMX Controlled
  • Beam angle: 30 degrees
  • 16 Sound Active shows
  • 32 built-in shows (16 color changing Shows and 16 color fading Shows)
  • 64 built-in color macros
  • Standalone or Primary/Secondary configuration
  • 5 Dimmer Curves (Standard, Stage, TV, Architectural, and Theater)
  • Display Inversion Mode
  • Color strobe effect
  • Linkable via 3-pin XLR cable
  • Electronic Dimming: 0-100%

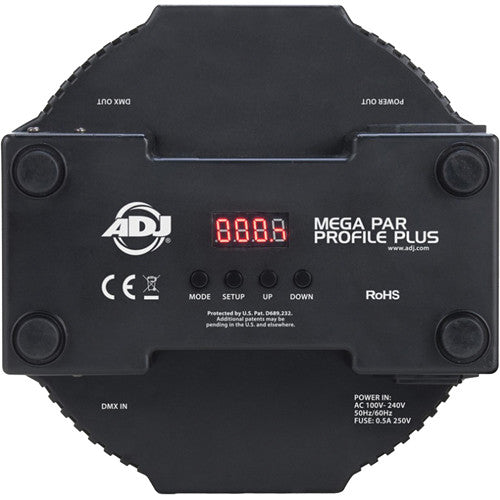

  • 4-button function display
  • Long life LEDs (50,000 hr)
  • Low power draw
  • IEC AC In/Out on rear to daisy chain power
  • Compatible with ADJ LED RC2 wireless infrared remote control
  • Multivoltage operation

American DJ Mega Par Profile Plus Specs

Light
Light Type PAR
Light Source 107 x Color LED
1 x Ultraviolet LED - 3 W
Light Source Life Expectancy 50,000 Hours
Colors 26 x Red
45 x Green
36 x Blue
1 x Ultraviolet
Beam Angle 30°
Dimming Electronic, 0 to 100% with 5 Dimmer Modes
Performance
Operating Modes Automatic, Color Dimmer, DMX, Display Inversion, Sound-Active, Static Color
Macros / Programs 64 x Color Macro
16 x Sound-Active
32 x Internal Program
Effects Strobe
Gobos None
Control
Control Protocols DMX512
DMX Channel Modes 5 Mode(s):
4 / 5 / 6 / 9 / 10-Channel
Display / Controls LED / 4-Button
Remote Control Yes
Connectivity
Inputs/Outputs 1 x XLR 3-Pin DMX Input
1 x XLR 3-Pin DMX Output
Power
AC Input Power 100 to 240 VAC, 50/60 Hz
AC Power Connector Input: 1 x IEC
Output: 1 x IEC
Power / Current Consumption 16 W (Max)
Power Linking 33 Units at 120 VAC
60 Units at 230 VAC
Environmental
IP Rating None
Physical
Mounting Dual/Scissor Yoke
Exterior Color Black
Dimensions 9 x 8.8 x 3.5" / 22.9 x 22.2 x 8.9 cm (Light)
16.8 x 9.5 x 9.3" / 42.7 x 24.1 x 23.6 cm (Bag)
6' / 1.8 m (DMX Cable)
Weight 3 lb / 1.4 kg (Each Light)
15 lb / 6.8 kg (System)
