Electro-Voice

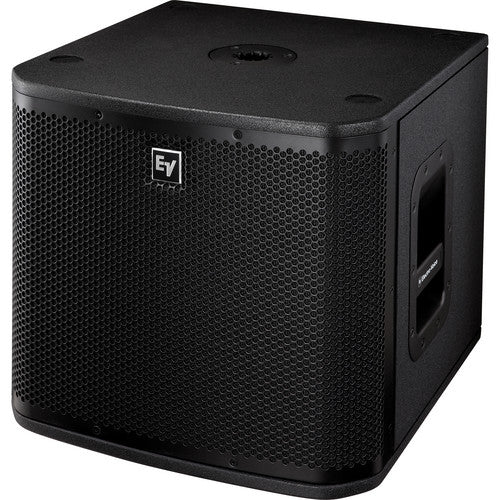

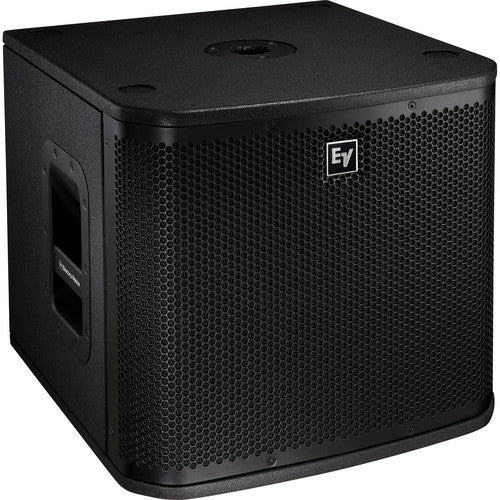

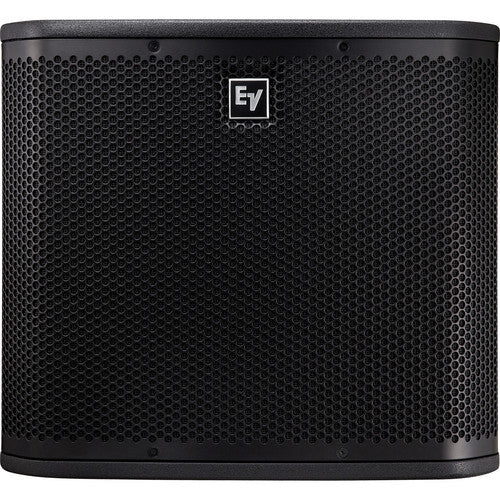

Electro-Voice ZXA1-Sub 12" 700W Active Subwoofer

Electro-Voice ZXA1-Sub 12" 700W Active Subwoofer

Regular price $899.00 USD
Regular price Sale price $899.00 USD
Sale Sold out
Key Features
  • 9-Ply Wood Cabinet
  • 12" Woofer
  • 700W Class-D Amplifier
  • Stereo XLR I/O
  • 100Hz High-Pass Filter
  • 35mm Pole Socket
  • Integrated Handle

The ZXA1-Sub 12" 700W Active Subwoofer from Electro-Voice is a compact and powerful subwoofer that's ideal for use alongside the ZXA1 full-range speaker. The subwoofer has a sturdy 15mm 9-ply wood enclosure that is braced internally for lasting durability. The 12" EVS-12S woofer is powered by a 700W Class-D amplifier for a strong, clear performance with deep bass and minimal distortion.

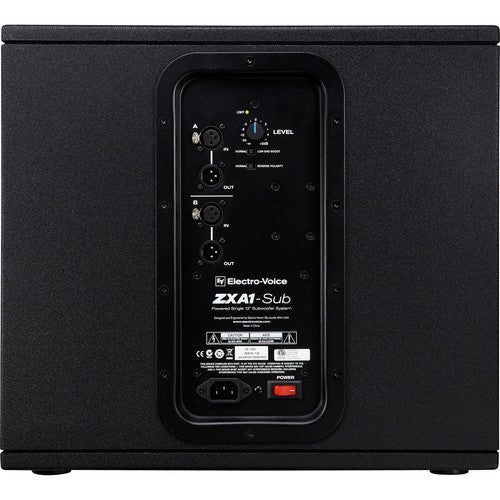

The rear panel has stereo XLR input and output connectors for wide compatibility with a variety of professional sound systems. A selectable 100Hz high-pass filter is also provided for additional flexibility with full-range sound systems. The sub has a standard 35mm pole socket that allows you to mount a speaker on top of the subwoofer. An integrated handle lets you carry the sub easily from one venue to another.

Ideal for use alongside the ZXA1 and other full-range speakers
The sturdy 15mm 9-ply wood enclosure is braced internally for lasting durability. The black textured paint finish ensures that the sub is not visually intrusive
The 12" EVS-12S woofer delivers low bass frequencies and SPL levels up to 126dB
The 700W Class-D amplifier provides a strong, clear performance with minimal distortion
The rear panel has stereo XLR input and output connectors for wide compatibility with a variety of professional sound systems
A selectable 100Hz high-pass filter is also provided for additional flexibility with full-range sound systems
The sub has a standard 35mm pole socket that allows you to mount a speaker on top of the subwoofer
An integrated handle lets you carry the sub easily from one venue to another

Configuration Active Subwoofer
Total Power Capacity 700 W
Amplifier Class Class-D
Drivers
LF Driver 1 x 12" / 304.8 mm Woofer
Performance
Frequency Response 44 Hz to 116 Hz
Maximum SPL 126 dB (Peak)
Connectivity
Audio I/O 2 x XLR 3-Pin Input
2 x XLR 3-Pin Output
Signal Processing
Filters High-Pass:
100 Hz
Power
AC Input Power 90 to 132 VAC, 50 / 60 Hz
AC Power Connector 1 x IEC
Current Consumption 1 A (1/8 Power)
Physical
Construction Material Plywood
Weight 46 lb / 20.9 kg

Materials

Shipping & Returns

Dimensions

22.3 x 19.4 x 17.9"
