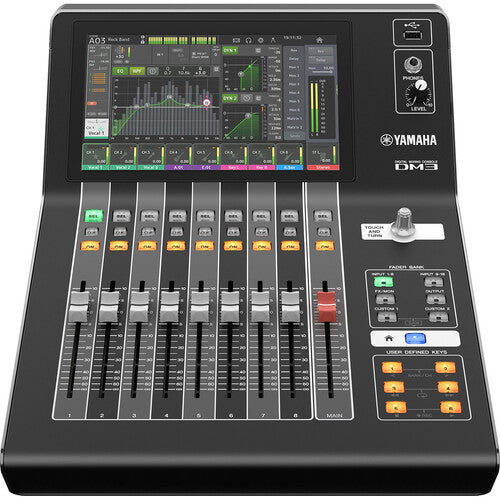

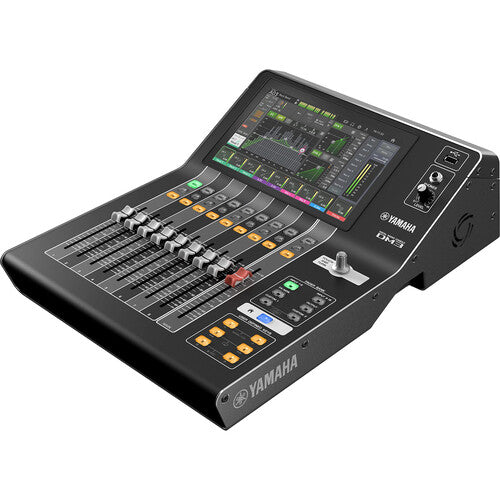

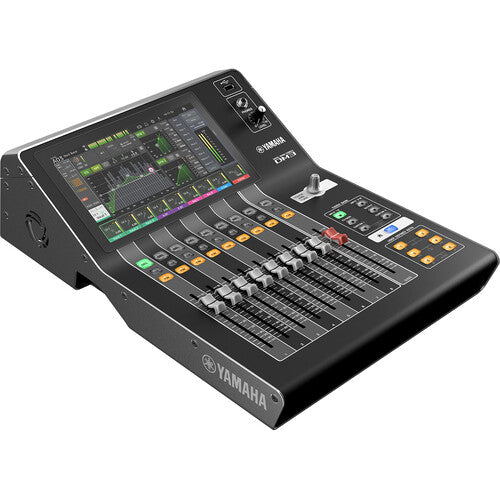

Yamaha DM3 Digital Mixing Console

16-Channel Digital Mixer for Studio, Stream and Live Applications

• 9" Touchscreen
• 9 Motorised faders
• "Turn & Touch" controls
• 18 x 18 USB 2.0 audio interface 96 kHz
• 8 Outputs
• 6 x Mix Bus + 2 x FX + 2 x Matrix
• DAW Remote Feature (HUI)
• OSC support for installations
• Editor app available for tablet (tablet not included)
• 16 x 16 DANTE interface
• 6 Freely assignable buttons
• 2 x 2 Channel record/playback via USB port
• 8 Effects + GEQ on the mix/stereo bus
• Dimensions (W x H x D): 320 x 140 x 455 mm
• Weight: 6.5 kg
• Includes Steinberg Cubase AI and VST Rack Elements

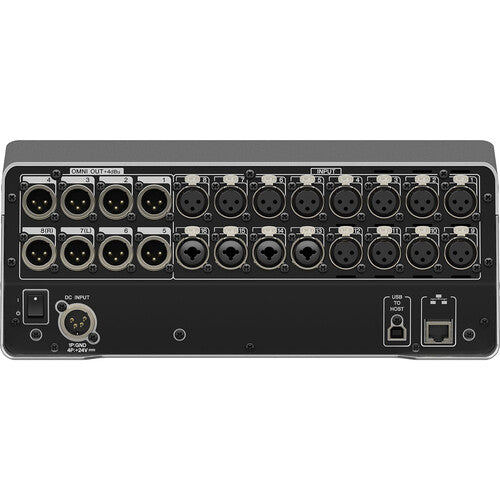

Connections:

• 16 Mic/line inputs (12 x XLR, 4 x combo XLR/jack 6.3 mm)
• 8 Line outputs XLR
• 2 x DANTE (RJ45)
• Stereo headphone output: 6.3 mm jack
• USB to Host
• USB to device
• Ethernet RJ45
