Yamaha

Yamaha DXS15XLF 1600W 15" Powered Subwoofer

Yamaha DXS15XLF 1600W 15" Powered Subwoofer

Regular price $1,599.99 USD
Regular price Sale price $1,599.99 USD
Sale Sold out
Color
Key Features
  • For Live Stage, Theatre, DJ Setups
  • Designed for Low-Frequency Extension

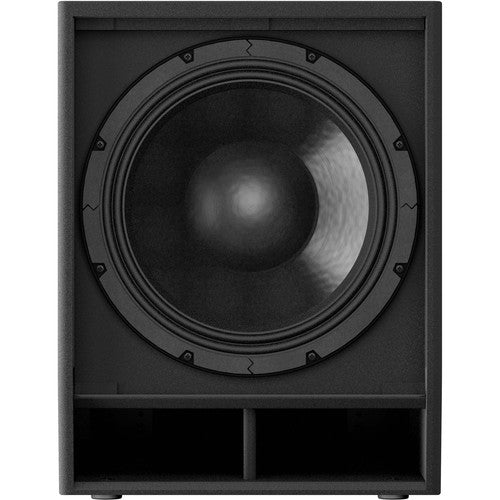

  • Woofer: 15" with 4" Voice Coil
  • Max SPL: 136 dB
  • Frequency Range: 33 to 150 Hz (-10 dB)
  • Class-D Amplifier: 1600W
  • 2 x Combo XLR-1/4" Inputs + XLR Thru/Out
  • D-XSUB LF Processing
  • Cardioid Mode for Two or More Subs

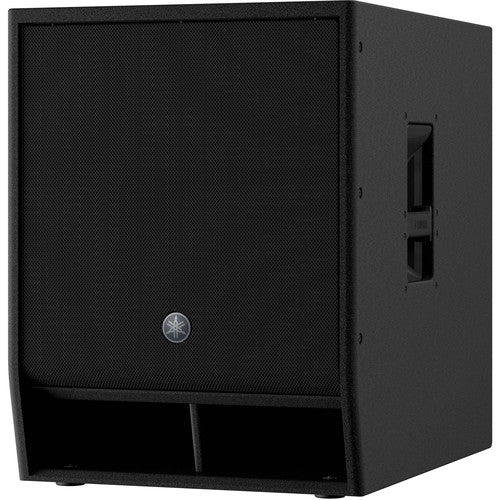

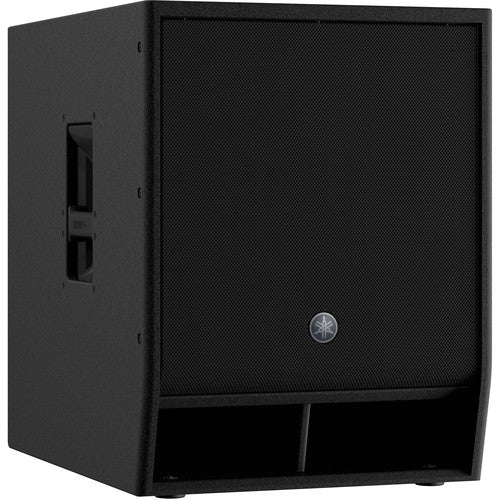

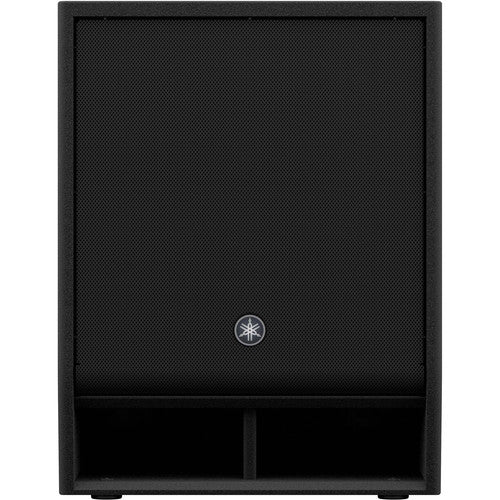

The black Yamaha DXS15XLF is a powered subwoofer designed for extending the low frequency of full-range speakers and is well suited for use with any of the DZR-series powered loudspeakers. The 1600W Class-D amplifier powers the 15" woofer to provide a frequency range of 33 to 150 Hz (-10 dB) with a maximum SPL of 136 dB.

The on-board D-XSUB LF 96 kHz DSP processor provides total bass management. The Normal mode is ideal for a balanced low-frequency response, while Boost mode provides a tighter and more focused bass with some extra punch. Xtended LF mode drops the low-end frequencies down even further for large bottom end. If using two or more subwoofers, the selection of Cardioid mode can effectively reduce stage volume, while increasing low-end output directed at the audience.

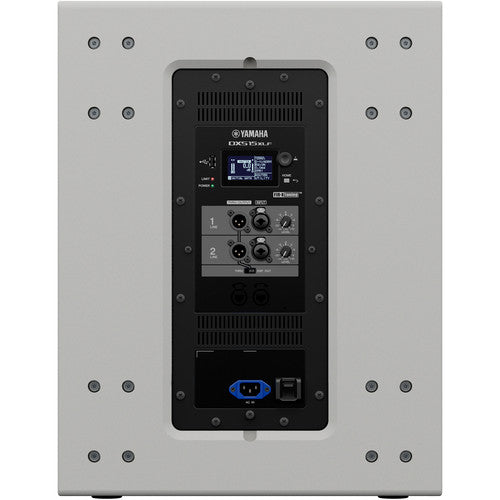

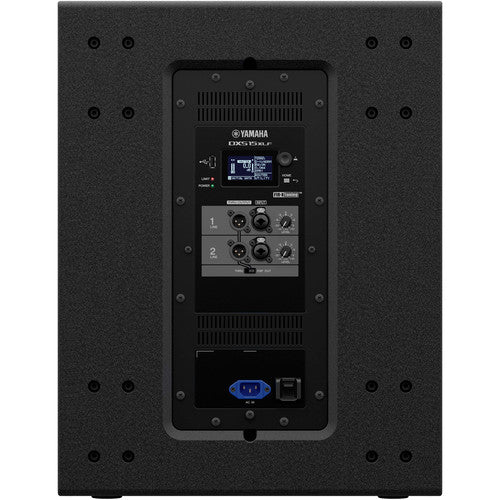

The rear panel offers two combo XLR-1/4" inputs with XLR thru/outputs and dedicated level controls. A USB port allows for system upgrades and preset configuration and backups. The Yamaha DXS15XLF ships with a standard IEC power cord.

General Features
  • Powered reflex subwoofer
    • Woofer: 15" with 4" voice coil
  • Ideal for low-frequency extension to all full-range loudspeakers
    • Maximum SPL: 136 dB
    • Frequency range (-10 dB): 33 to 150 Hz
  • High-power 1600W Class-D amplifier module
  • Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
  • Optional speaker cover (SPCVR-DXS15X) and wheel kit (SPW-1)
D-XSUB LF Processing
  • DXS XLF subwoofers are driven by 96 kHz high-power DSP processors and utilize dynamic EQ
  • Onboard D-XSUB LF processing provides total low-frequency management
    • Normal mode:  Set for ideally balanced low-frequency response
    • Boost mode: Provides a tighter and more focused bass with some extra punch
    • Xtended LF mode: Drops the low-end frequencies down even further for a large bottom end
  • Cardioid mode:
    • Works with two or more subwoofers
    • Effectively decreases the sound pressure on stage while increasing the bottom-end output directed towards the audience
    • Results in a much cleaner stage monitoring environment
DSP Protection
  • DSP protection functions for maximum output and component longevity
  • Active subwoofers ensure the combination of transducer and amplifier are matched and optimized for the best possible performance
  • During development, Yamaha measured and tested the durability of each transducer and the overall amplifier output to set optimal limiter points using precise DSP control
  • Employing many of the same protection functions used in high-end professional power amplifiers, Yamaha's DSP consistently monitors the status of the power supply, power amplifiers, transducers, and signal levels to protect each component in order to maintain optimum performance while extending component life and usability
PA Speaker
Configuration Active Subwoofer
Enclosure Type Bass-Reflex Subwoofer
Total Power Capacity 1600 W Peak
1200 W RMS
Amplifier Class Class-D
Drivers
LF Driver 1 x 15" / 381 mm Woofer
LF Voice Coil 4" / 101.6 mm
Magnet Ferrite
Performance
Frequency Range 33 Hz to 150 Hz -10 dB
Maximum SPL 136 dB
Max Input Level Line Input:
+24 dBu
I/O Impedance Input:
20 Kilohms
Connectivity
Audio I/O 2 x Combo XLR-1/4" TRS Female Balanced/Unbalanced Input
2 x XLR 3-Pin Male Balanced Output
USB 1 x USB-A (External Memory, Host Connection)
Signal Processing
Maximum Sampling Rate 96 kHz
Power
AC Input Power Universal:
100 to 240 VAC, 50 / 60 Hz
AC Power Connector 1 x IEC (Locking)
Power Consumption 40 W (Idle)
180 W (1/8 Power)
Physical
Mounting 1 x 1.4" / 35 mm Pole Socket (Top)
1 x M20 Pole Socket (Top)
Handles 1 x Each Side
Cooling Fan (Variable Speed)
Construction Material Plywood
Dimensions 17.7 x 23.1 x 23.6" / 450 x 587 x 600 mm
Weight 88.2 lb / 40 kg
